Use the filters below to view all product variations.
No items found for your selection.
Product Number DescriptionAdd to Quote
Product Number:Z-36222Description:Bonded Braided High-Pressure Extension Line, Female Luer Lock to Male Luer Lock, PC, PU, Nylon, 0.069 inch ID x 0.139 inch OD, 20"
Product Number:Z-36223Description:Bonded Braided High-Pressure Extension Line, Female Luer Lock to Male Luer Lock, PC, PU, Nylon, 0.069 inch ID x 0.139 inch OD, 30"
Product Number:Z-36225Description:Bonded Braided High-Pressure Extension Line, Female Luer Lock to Rotating Male Luer Lock, PC, PU, Nylon, Silicone, 0.069 inch ID x 0.139 inch OD, 30"
Product Number:Z-33003Description:High-Pressure Extension Line, Female Luer Lock to Male Luer Lock, PVC, 0.071 inch ID x 0.158 inch OD, 10"
Product Number:Z-33006Description:High-Pressure Extension Line, Female Luer Lock to Male Luer Lock, PVC, 0.071 inch ID x 0.188 inch OD, 10"
Product Number:Z-33020Description:High-Pressure Braided Extension Line, Female Luer Lock to Rotating Male Luer Lock, EPDM, PC, PU, Nylon, 0.071 inch ID x 0.142 inch OD, 10"
Product Number:Z-36227Description:Bonded Braided High-Pressure Extension Line, Female Luer Lock to Rotating Male Luer Lock, PC, PU, Nylon, Silicone, 0.071 inch ID x 0.144 inch OD, 12"
Product Number:Z-36219Description:Bonded Non-Braided, High-Pressure Extension Line, Female Luer Lock to Male Luer Lock, PC, PVC, 0.085 inch ID x 0.185 inch OD, 48"
Product Number:Z-33018Description:Bonded Braided High-Pressure Extension Line, Female Luer Lock to Rotating Male Luer Lock, PC, PU, Nylon, Silicone, 0.071 inch ID x 0.144 inch OD, 48"
Product Number:Z-36230Description:High-Pressure Extension Line, Female Luer Lock to Male Luer Lock, PVC, 0.071 inch ID x 0.188 inch OD, 10"
SKU: N/A Categories: ,

Extension Lines Description

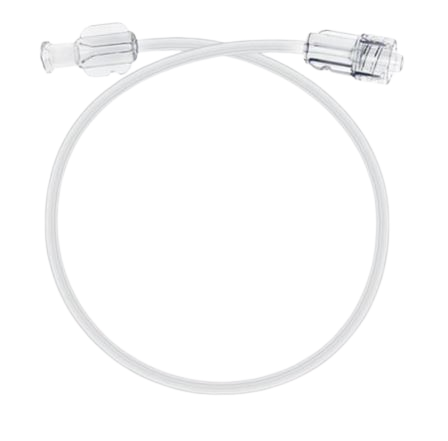

IV extension tubing available in coiled, insert-molded and bonded styles. Coiled extension lengths range from 36 inches (914.4 mm) to 78 inches (1981 mm) and come with various connections, including female luer lock to male luer lock, and female luer lock to male luer lock with non-vented cap. Medical IV extension lines range in length from five inches (127 mm) to 60 inches (1524 mm), with connections that include needle-free valve to male luer lock, 3-way stopcock to male luer lock, and female luer lock to male luer lock. Insert-molded extension lines range in length from 10 inches (254 mm) to 60 inches (1524 mm), with connections of female luer lock to male luer lock. Bonded PVC IV extension tubing is available in non-braided and braided styles.

These IV extension tubes come with a bonded polycarbonate female luer lock inlet and either a rotating or fixed male luer outlet. Medical extension lines are offered with varying ID and OD measurements, pressure ratings from 100 to 1200 psi, and lengths of six inches (152.4 mm) to 60 inches (1524 mm). Our collection offers IV extension tubing in various types, including pressure monitoring, coiled and light-sensitive, along with various connector options to complement your design.
