Tracer Particle Solution
In Stock

Tracer Particle Solution

In Stock

Tracer Particle Solution Description

The Tracer Particles used by Microrite, Inc. are NOT SMOKE PARTICLES. When properly diffused, a Neutrally Buoyant cloud-like fog of Tracer Particles sized between 0.3µM and 0.5µM is released into the cleanroom environment. These sterile particles are comprised of USP Grade Materials Such as Triethylene Glycol, Monopropylene Glycol, Dipropylene Glycol, and purified water. The cloud of Tracer Particles is oil and glycerin-free, non-condensing, FDA GRAS-approved, and is non-toxic. For typical Air Flow Visualization Studies, this fog does not condense and pool up on cleanroom surfaces or cleanroom equipment. The Tracer Particle Solution is vaporized at ~320˚C creating a sterile and hot vapor that exits from the cleanroom vaporizer into an expansion chamber, mixing with inlet air and traveling via a high-temperature silicone tube to the Diffuser System.

Tracer Particle Solution Features

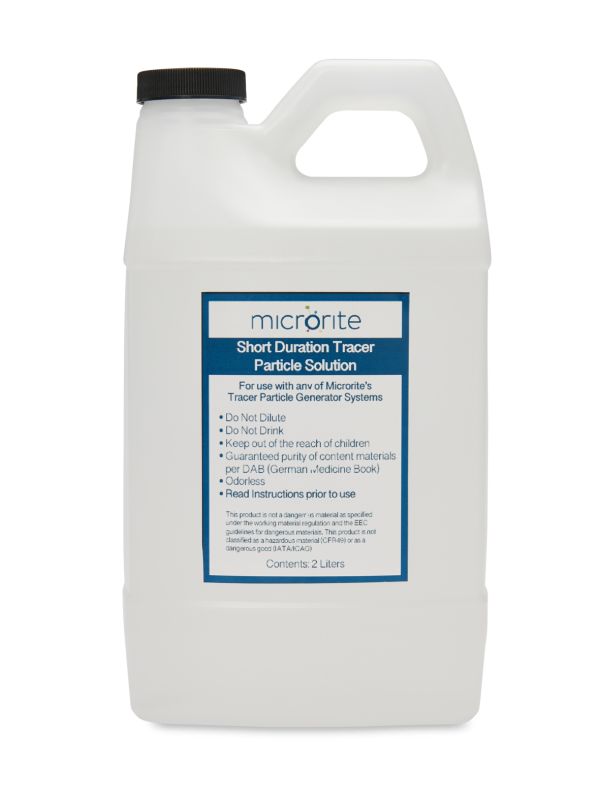

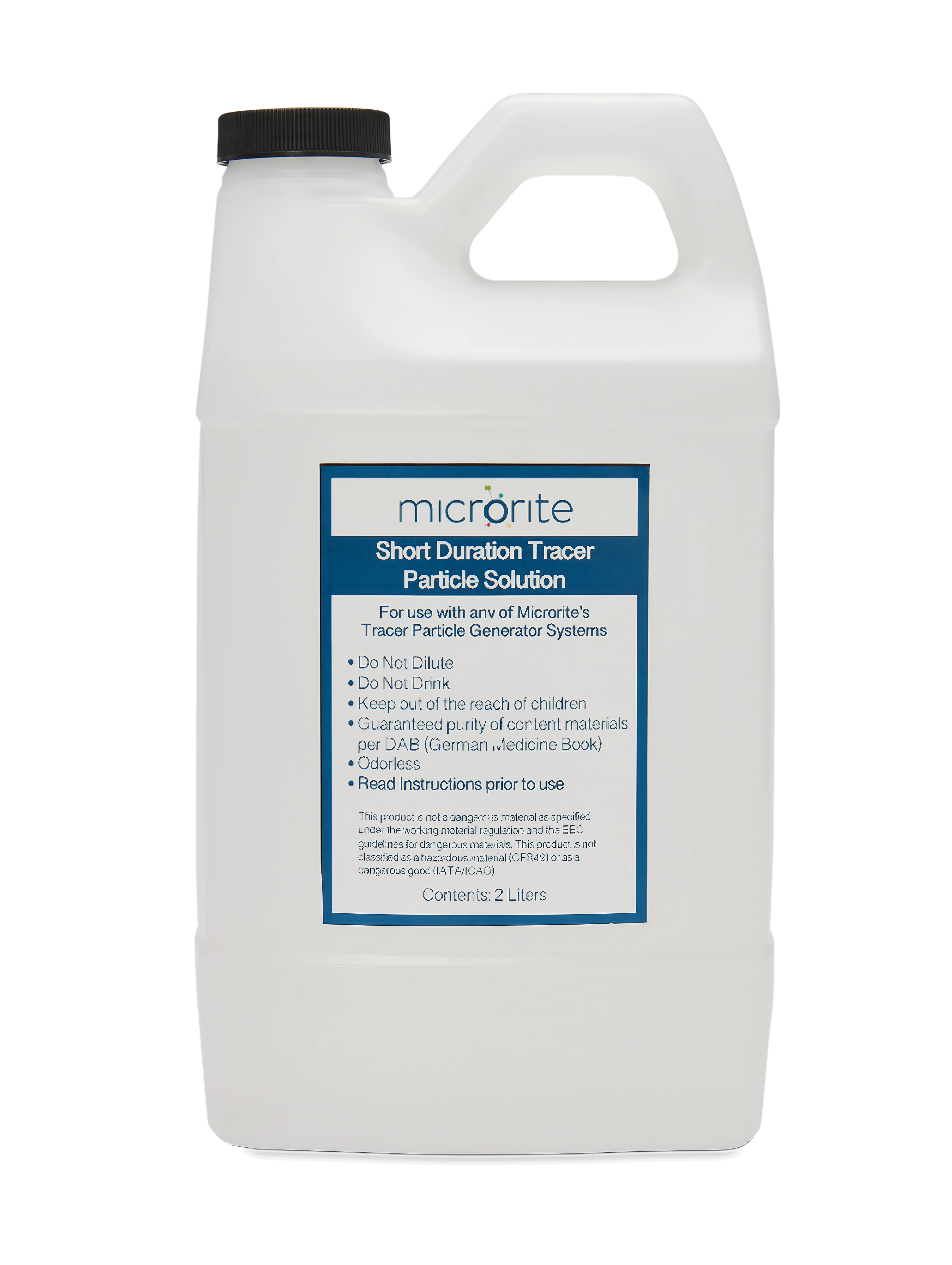

  • The Short Duration Tracer Particle Solution is formulated for low volume clean environments such as Isolators, RABS, mini-environments, Biological Safety Cabinets, Flow Benches and areas with unidirectional airflow.  Short Duration Fluid should not be used for Recovery Studies.

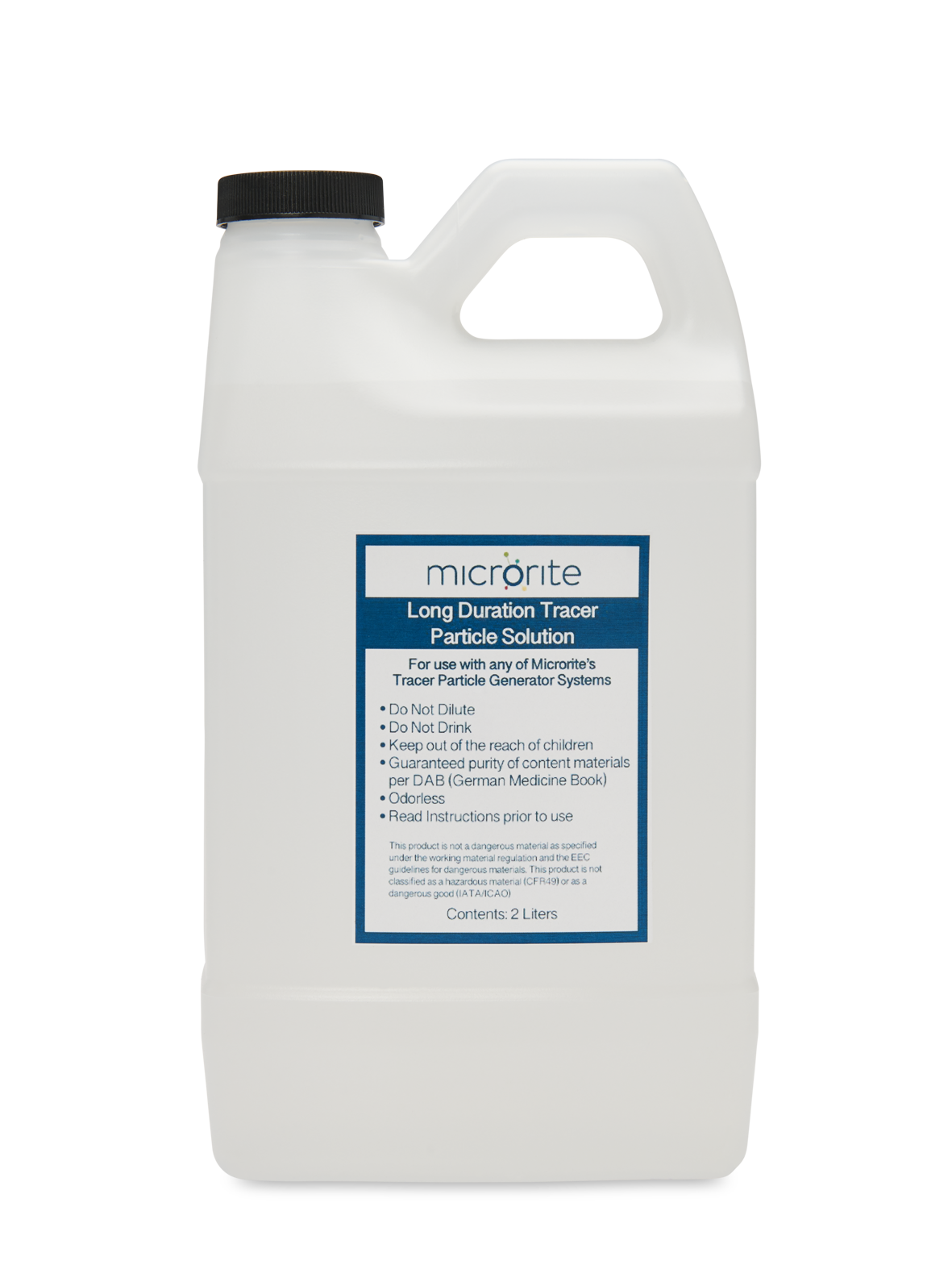

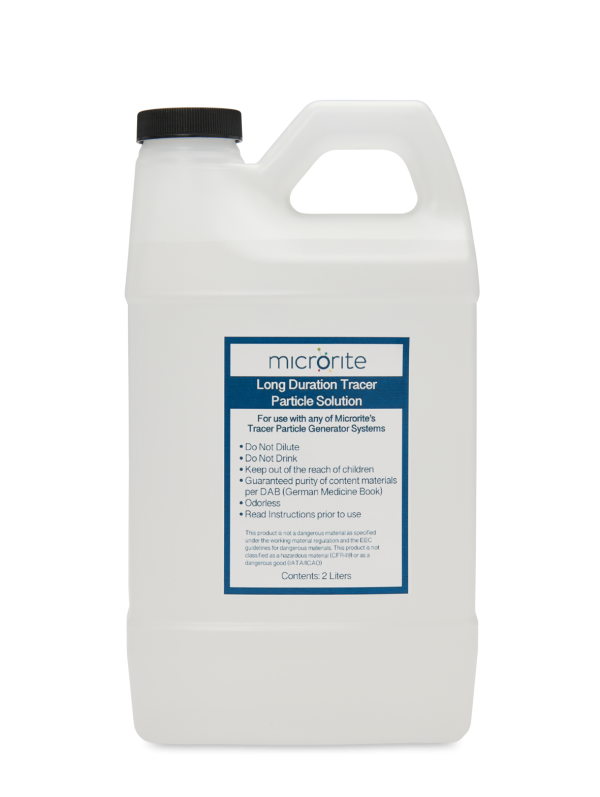

  • The Long Duration Tracer Particle Solution is formulated for clean environments such as non-unidirectional airflow cleanrooms, air-locks and pass-throughs.  Long Duration Solution is best for testing the mixing of air in cleanrooms and controlled environments and is also used in Recovery Studies.





Tracer Particle Solution Datasheet

Name
Tracer Particle Solution
