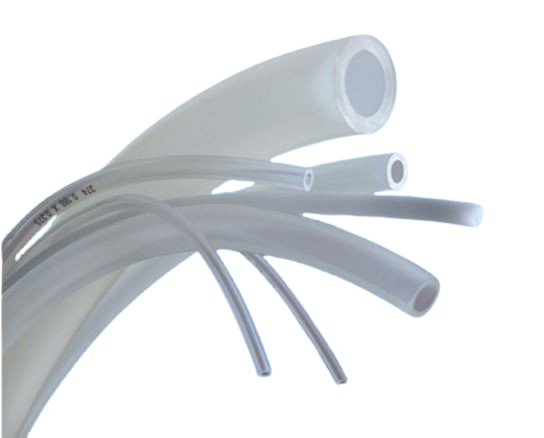

C-Flex® Tubing

C-Flex® is the original patented thermoplastic elastomer tubing specifically designed to meet the critical demands of pharmaceutical and biopharmaceutical applications for fluid processing with excellent heat seal and sterile weld capabilities.

For over 30 years, C-Flex® has been the thermoplastic elastomer tubing most widely used and validated by the world’s leading pharmaceutical and biopharmaceutical companies. Each coil of C-Flex® tubing is extruded to precise ID and wall dimensions. C-Flex® tubing is part of a family of TPE tubing offering the widest range of formulations and sizes in the industry including C-Flex® 082 and 374 translucent tubing for fluid flow visibility, and C-Flex® 072 opaque for peristaltic pump and light sensitivity applications. For applications demanding higher pressure, C-Flex® Braided combines a polyester fiber reinforcement with C-Flex® 082 material. C-Flex® tubing has a secure global supply chain with redundant manufacturing sites in the United States and Europe with validated manufacturing processes.

50' Coil, 0.031 x 0.094 x 0.031
50' Coil, 0.063 x 0.125 x 0.031
50' Coil, 0.063 x 0.188 x 0.062
50' Coil, 0.125 x 0.250 x 0.062
50' Coil, 0.188 x 0.313 x 0.062
50' Coil, 0.188 x 0.375 x 0.094
50' Coil, 0.250 x 0.375 x 0.062
50' Coil, 0.250 x 0.438 x 0.094
50' Coil, 0.250 x 0.500 x 0.125
50' Coil, 0.313 x 0.500 x 0.094
50' Coil, 0.375 x 0.500 x 0.062
50' Coil, 0.375 x 0.563 x 0.094
50' Coil, 0.375 x 0.625 x 0.125
50' Coil, 0.500 x 0.688 x 0.094
50' Coil, 0.500 x 0.750 x 0.125
50' Coil, 0.625 x 0.875 x 0.125
50' Coil, 0.750 x 1.00 x 0.125
50' Coil, 0.750 x 1.125 x 0.188
50' Coil, 0.750 x 1.250 x 0.250
50' Coil, 1.00 x 1.375 x 0.188
50' Coil, 1.00 x 1.500 x 0.250

C-Flex® Tubing

"*" indicates required fields

Request Product Sample

"*" indicates required fields

Address*

C-Flex® Tubing

"*" indicates required fields

Product Features

  • Sealable and weldable either pre- or post-sterilization
  • C-Flex® 072 provides prolonged pump life
  • Sterilizable by gamma irradiation and autoclave
  • Product Validation Test Summaries available upon request
  • Moldable, bondable and formable for single-use assemblies and overmolds
  • Temperature range -67°C to 135°C (-85°F to 275°F)
  • Significantly less permeable than silicone
  • All formulas are Animal-Derived Component Free
  • Multiple Manufacturing sites

Product Details

Product Number Product Type Size
V-374-031-1 50' Coil 0.031 x 0.094 x 0.031
V-374-063-1 50' Coil 0.063 x 0.125 x 0.031
V-374-063-2 50' Coil 0.063 x 0.188 x 0.062
V-374-125-2 50' Coil 0.125 x 0.250 x 0.062
V-374-188-2 50' Coil 0.188 x 0.313 x 0.062
V-374-188-3 50' Coil 0.188 x 0.375 x 0.094
V-374-250-2 50' Coil 0.250 x 0.375 x 0.062
V-374-250-3 50' Coil 0.250 x 0.438 x 0.094
V-374-250-4 50' Coil 0.250 x 0.500 x 0.125
V-374-313-3 50' Coil 0.313 x 0.500 x 0.094
V-374-375-2 50' Coil 0.375 x 0.500 x 0.062
V-374-375-3 50' Coil 0.375 x 0.563 x 0.094
V-374-375-4 50' Coil 0.375 x 0.625 x 0.125
V-374-500-3 50' Coil 0.500 x 0.688 x 0.094
V-374-500-4 50' Coil 0.500 x 0.750 x 0.125
V-374-625-4 50' Coil 0.625 x 0.875 x 0.125
V-374-750-4 50' Coil 0.750 x 1.00 x 0.125
V-374-750-6 50' Coil 0.750 x 1.125 x 0.188
V-374-750-8 50' Coil 0.750 x 1.250 x 0.250
V-374-1000-6 50' Coil 1.00 x 1.375 x 0.188
V-374-1000-8 50' Coil 1.00 x 1.500 x 0.250
Please contact your sales representative directly to obtain your custom pricing.

Data Sheets

Product Name Product Number
C-Flex-Tubing.pdf Download
